氢燃料电池堆

**极永新能源 2000W 燃料电池堆**

极永新能源 2000W 氢燃料电池堆是一款 2kW 级 PEM 燃料电池系统,专为车辆级动力支持及大容量移动能源供应而开发,适用于对持续功率输出要求超越便携式燃料电池单元的应用场景。

该 2000W 系统能够承载更高的电力负荷,与氢动力叉车、三轮物流车及高尔夫球车等场景高度匹配——稳定供电与快速加氢对日常运营至关重要。该系统还可作为无人机地面氢电源,支持野外环境下的充电及任务部署。

2000W 燃料电池无需依赖大型电池组,即可实现按需发电,运行噪音低、废气零排放。这使得其适用于户外移动备用电源、工业场所、仓库、园区以及需最大限度降低噪音、排放和停机的临时离网设施。

组件清单:

  • 燃料电池堆(含风扇)

  • 燃料电池控制器

  • TPU 或 PTFE 管路

  • 进气电磁阀

  • 压力传感器

  • 电流传感器


获取报价 获取报价
**极永新能源 2000W 燃料电池堆**

2000W 空冷式氢燃料电池 PEM 燃料电池

Fuel cells offer a modern solution for clean electricity production by using hydrogen as the energy source. Through an electrochemical conversion process, they transform chemical energy directly into usable electrical power, delivering efficient operation with no harmful emissions.

获取报价 获取报价
**极永新能源 2000W 燃料电池堆**

细胞数量

This fuel cell stack is composed of 80 fuel cells.

**极永新能源 2000W 燃料电池堆**

氢气压力

Hydrogen must be fed into the fuel cell stack at a pressure of 0.04-0.06 Mpa.

**极永新能源 2000W 燃料电池堆**

环境温度

The fuel cell stack operates best in a temperature ranging from -5~35° C.

**极永新能源 2000W 燃料电池堆**

加湿

This fuel cell stack uses self-humidification.

**极永新能源 2000W 燃料电池堆**

FC 堆叠重量

The stack (including fan and casing) weighs g.

**极永新能源 2000W 燃料电池堆**

控制器重量

The weight of the controller is g.

**极永新能源 2000W 燃料电池堆**

系统效率

At 12 volts the efficiency of the system is over 40%.

**极永新能源 2000W 燃料电池堆**

外接电源

It can be provided by H2Gatech or sourced by the customer.

让氢能焕发生机

Hydrogen is more than just an element; it is a sustainable energy carrier designed for a carbon-neutral future. Unlike fossil fuels, hydrogen is non-toxic, abundant, and can be produced from renewable sources. H2Gatech fuel cell stacks harness this versatility to provide a clean power supply for everything from remote IoT sensors to large-scale backup systems. By integrating hydrogen technology today, businesses can transition to a low-carbon energy model that is both practical for current operations and scalable for future growth.

获取报价 获取报价
**极永新能源 2000W 燃料电池堆**
**极永新能源 2000W 燃料电池堆**

利用氢能推进清洁能源发展

Unlike conventional internal combustion engines that suffer from thermal and mechanical energy loss, H2Gatech fuel cells leverage an advanced electrochemical process to achieve maximum energy conversion efficiency. By directly transforming hydrogen into electricity, our systems eliminate the inefficiencies of burning fossil fuels. This combustion-free technology not only reduces heat dissipation but also provides a stable, high-performance power source for critical infrastructure. Transitioning from traditional generators to PEM fuel cell technology means choosing a smarter, quieter, and more efficient path to power.

获取报价 获取报价

极永新能源 2000W 燃料电池堆组件清单:

2000W 燃料电池堆(含风扇)
2000W 燃料电池控制器
TPU 或 PTFE 管路
进气电磁阀
压力传感器
电流传感器

极永新能源 2000W 燃料电池堆性能

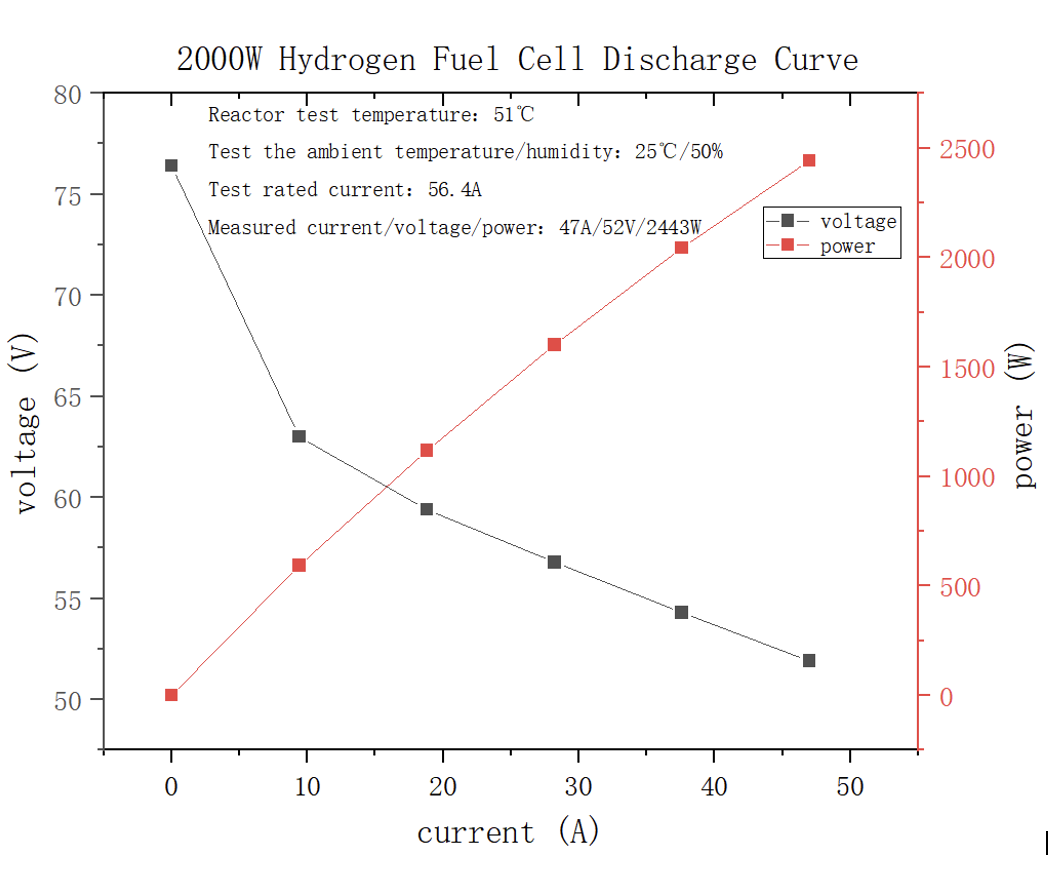

以下极化曲线展示了该电堆的典型性能。极永新能源2000W燃料电池堆采用PEM(质子交换膜)燃料电池技术,通过电化学反应将氢气和氧气直接转化为电能,无需燃烧。

2000W

极永新能源 2000W 燃料电池堆应用领域

氢动力叉车及物料搬运车辆

三轮配送车及多功能作业车

高尔夫球车及低速电动车

无人机地面电源及移动支援系统

户外移动备用电源设备

便携式氢燃料电池电站

燃料电池堆制造商

极永新能源是一家专业的燃料电池堆制造商,提供10W至6000W的可定制氢燃料电池系统,广泛应用于氢动力车辆、无人机及备用电源解决方案。我们为不同需求提供高品质、安全可靠的燃料电池堆。如果您正在为您的项目寻找燃料电池堆,欢迎随时联系我们。


输出性能
功率2000 W
工作电压40 V – 74 V
工作电流0 A – 56.4 A
效率> 40%
燃料
氢气消耗量35 L/min (56.4 A 时)
氢气纯度≥ 99.99% (CO < 1 ppm)
氢气压力0.035 MPa – 0.05 MPa
工作环境
环境温度0 – 35 ℃
环境湿度10% – 90%
存储环境0 – 60 ℃
物理参数
单电池片数80

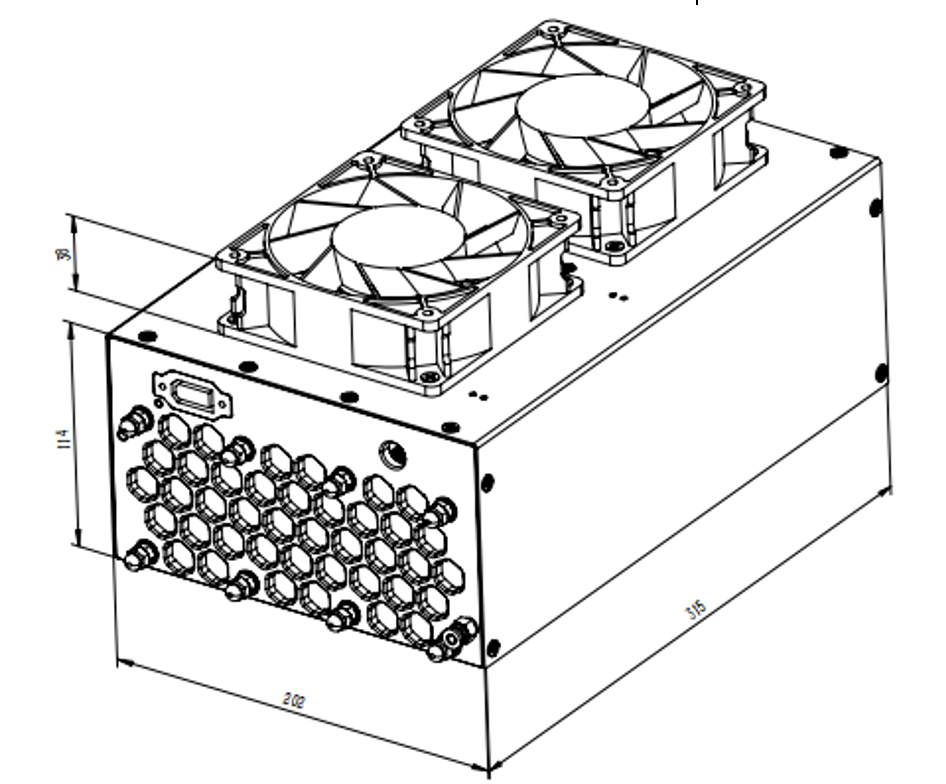

电堆尺寸152 × 202 × 315 mm
重量6390 g
